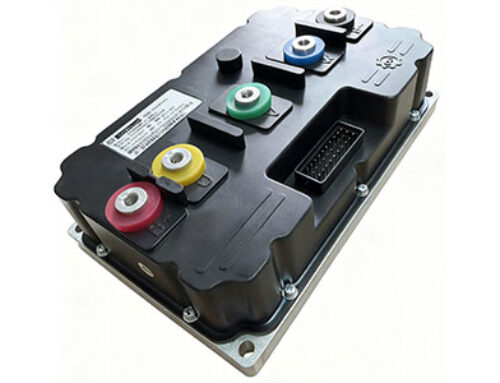

Fardriver Controller ND72680
is a electric bike, electric bicycle, electric scooter, electric motorcycle grade sine-wave motor controller, high efficiency, less noise and lower energy consumption, which makes your electric bike or electric motorcycle more comfortable and easier to control.
You can program it via Bluetooth easily, supports both iPhone and Android Phone.
Fardriver Controller ND72680 (Battery Currnet 350A, Phase Current 680A)
Support Voltage: DC 48-72V (max. 90V), recommend 72V battery system.
Support DC Current: maximum 350A (battery current).
Support Phase Current: maximum 680A.
Function: Forward, Reverse, Boost, 3-Speed, Low Brake, Hight Brake, etc.
Controller Type: Sine-Wave (Sinusoidal Type) motor controller.
Controller Size: 179x120x65mm. Length 179mm, Width 120mm, Height 65mm.
Net Weight: 2.65kgs
Fardriver Controller Features:
1) FOC-180︒sinusoidal drive controller applied to BLDCM or PMSM, Hub Motor, Mid Drive Motor.
2) It takes only 3 minutes for the motor to be well matched on its best electronic angle at the first time.
3) The motor torque ripple will be reduced to the minimum, so as to ensure electric vehicle to run without any noise and vibration, smoothly, and comfortably.
4) The precise current ring can provide accurate torque input to meet the requirement of large torque output during vehicle starting and climbing.
5) The controller enjoys high efficiency due to space vector converter control algorithm which can effectively reduce the temperature rise of controller and extend battery life mileage
6) Built-in various protection: locked-rotor protection, over-current protection, overload protection, over-temperature protection, speed protection, over-voltage protection, under-voltage protection and so on, effectively ensuring the safety of electronic control system and vehicle.
7) System status and fault intelligent management system can effectively monitor the current system operating mode external input state ,the case of system failure, and the LED flashes at the same time to facilitate the diagnosis and maintenance.
8) The rich peripheral interfaces: reverse, cruise, anti-theft, electronic brake, etc.
9) Parameter modifications and settings are available through online configuration with online computer.
